Team & Infrastructure

Our Team

Nilesh Vadhar
Director, Commercial

Nilesh is a qualified engineer, with a keen eye for administrative excellence and marketing strategy creation and deployment. Nilesh has over 33 years of rich experience across segments and geographies.

Jitendra Davda
Director, Technical

Jitendra is a skilled technocrat with a proven passion for innovation and operational merit. Jitendra has over 35 years of proven experience in the domain of niche and critical engineering.

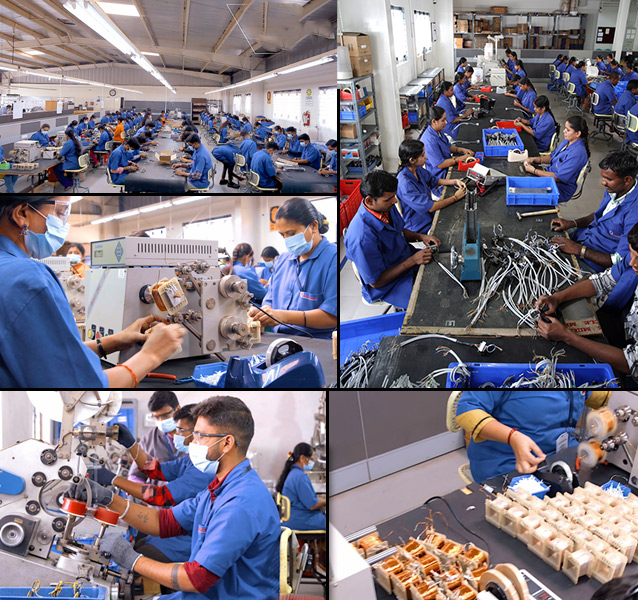

Infrastructure

Miracle Electronics is spread across three full fledged and well equipped facilities in the IT and Technology hub of Bangalore, India. These facilities have been strategically placed in localities that are host to numerous world-class organizations, giving us excellent access to utilities and amenities.

The facilities comprise of state of the art shop floors, which conform to all norms of industry with respect to standards of production and safety. The facilities are also host to various internal functions like Product design & Development, Customer Service, Quality Assurance and other administrative functions.

We understand the importance of training; hence our facility is also equipped with world-class training rooms with ample room for growth and expansion.

Collectively the facility houses 250 individuals per shift and has a scope of seamless expansion to accommodate 200 more professionals.

40,000 sft facility housing:
  1. Design In-house facilities
  2. R&D Lab
  3. Electrostatic Discharge (ESD) Facilities
Specific facilities available in-house include:
  1. Laser Printing Machine
    • Cable Diameter 0.8mm to 6.35 mm  (Specially for Defense)
    • Can print Horizontal as well as Vertical
    • Character Set (Full Uppercase and Lowercase ASCII alphanumeric character set)
  2. Bar Code facilities for Raw Material
Standards followed by our trained workforce include:

Workmanship Proficiency for Wire Harness / Cable Assembly:

  • IPC/WHMA-A-620 ( we have Certified IPC Trainer & Certified IPC Specialist 12 members)
  • J-STD-001
  • Others as per customer specifications

All of our staff are tested, qualified and supported with an ongoing training programme or continued professional development programme.

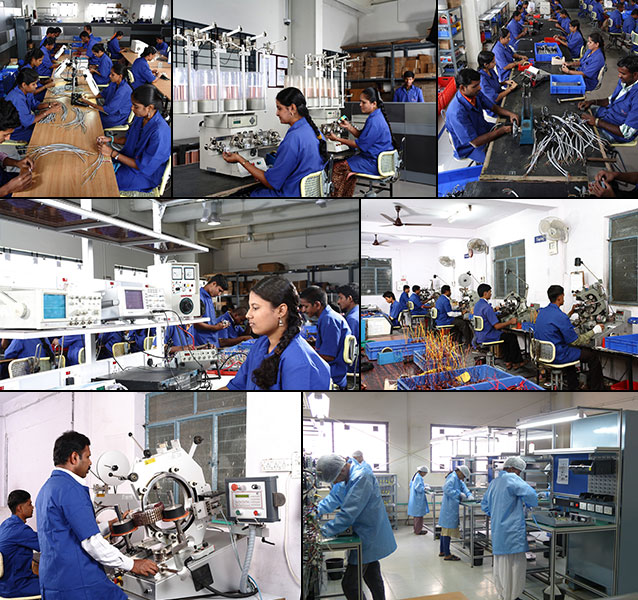

Capability

Our team experts providing  end-to-end  solutions starting  from concept design,   Design for  Manufacturing  and  Assembly , detailed  design,  and performance testing and qualification.

Design Capabilities:

Design Software’s:

CEMILAC Design approval Under progress

  • An effective and dedicated software tracks and records all assets
  • Quality plan is infused in the initial stages of product design itself
  • Internal and external audit is carried out at regular intervals to maintain the quality system.
  • Root cause analysis along with corrective and preventive measure is enforced to enable cost saving and elimination of reoccurrence of mistake. During the production -8D report is generated for any complaint received.
  • We assist our customers to get approvals for transformers and assemblies for their products.
  • Designs & Drawings including work instructions/revisions are updated with dedicated software.
  • Our Quality Management System is registered to the Aerospace Quality Standard AS 9100 D ISO 13485: 2016 Medical / Lab Standards & ISO 9001:2015 quality standards.
  • We focus attention of every employee on the quality of their work, to get it right first time with zero error.
  • Entire quality systems & MRP are managed & run by “SAP” – ERP System.
  • Everyone in our organization recognizes that Total Quality depends on their contribution.
  • Our manufacturing standards are as per UL /CE / EN 61558 / E311322 RoHS and REACH.
  • Staff are regularly trained to enable them perform their duties effectively. They are given right authority within the scope of their responsibilities to maintain the standards of performance. All this is agumented with the able utilization of a dedicated and custom built Training Manager Software.
  • Responsibilities and duties of staff are clearly identified and communicated on a regualar basis
Different Types of Transformer Designs:

1. E&I Transformer (Conventional)

  • Single Phase & Three Phase
  • PCB Mount Rating up to 24VA
  • Panel Mount Rating up to 5 KVA for Single Phase & Rating up to 15 KVA for Three Phase
  • Auto Transformer Rating up to 15 KVA for Single Phase

2. Toroidal Transformers (Round /Ring Type)

  • Single Phase & Three Phase
  • Panel Mount Rating up to 5 KVA for Single Phase & Rating up to 15 KVA for Three Phase
  • Auto Transformer Rating up to 45 KVA for Three Phase

3.  C-Core (Single Phase)

  • Rating up to 2 KVA

4. UI Core (Single Phase)

  • Rating up to 50 VA
Primary advantages by selecting the MIRACLE transformers:
  • Customer Design Accepted
  • Design and Development as per Customer Specified Requirements Accepted.
  • Competitively priced
  • Value for Money you pay
  • Advanced Winding Machineries
  • Stringent Quality Control
  • Small to Large Quantity Manufacturing Capacity
  • Experienced and trained Work Force
  • Continuous Up gradation to Quality and Production standards High Efficiency, High Thermal Dissipation
  • Rugged Construction
  • Use of Wide Range of Magnetic Materials
